SchemaPose: RGB-Based Category-Level Pose Estimation with Parametric Category Schema

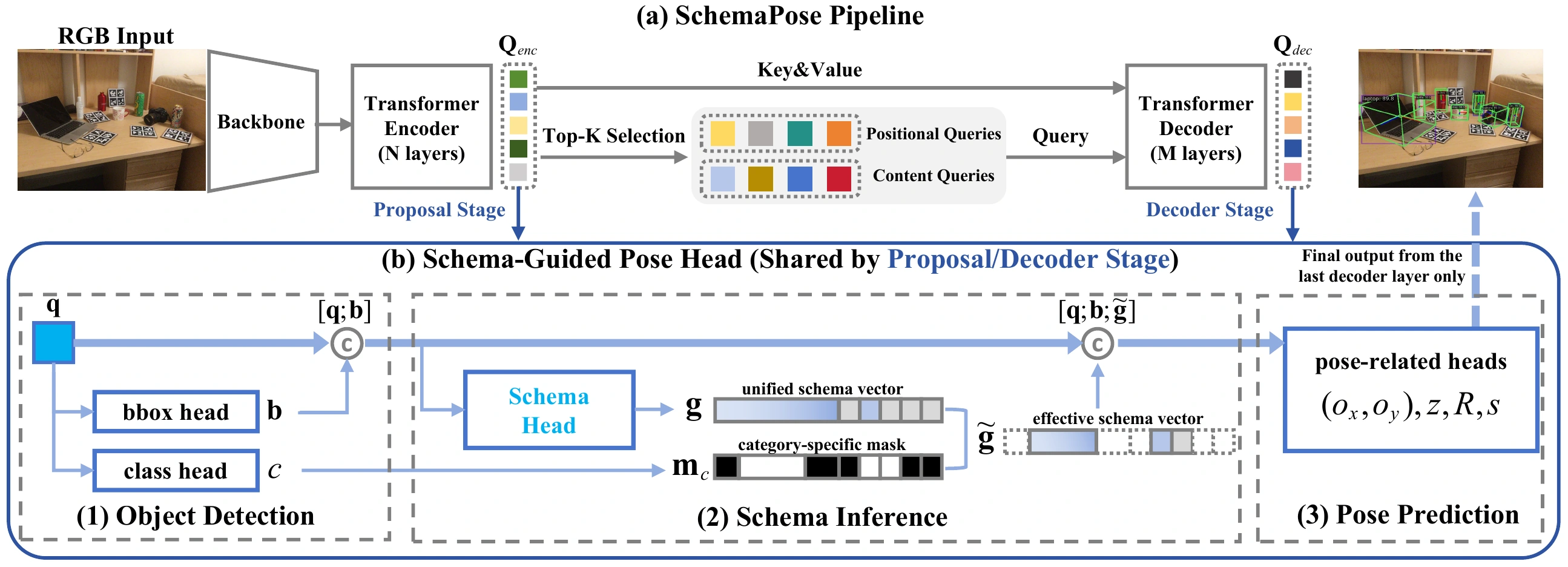

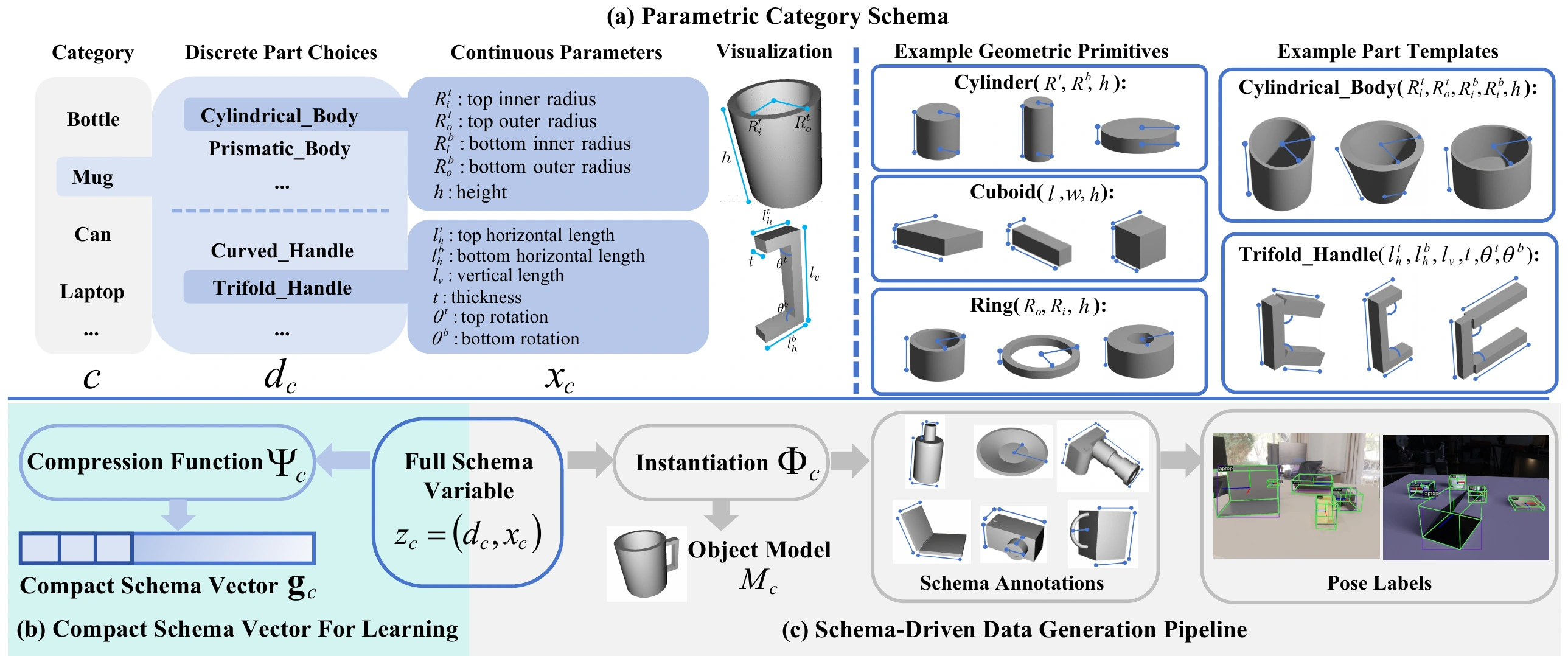

RGB-based category-level 9D pose estimation remains highly challenging because a monocular system must generalize across unseen object instances while jointly inferring 3D translation, 3D rotation, and 3D size. Unlike instance-level pose estimation, the category-level setting requires the network to learn both what is shared across objects within a category and how individual instances vary in structure. This challenge is amplified in the RGB-only setting, where pose cues, category-level commonality, and instance-specific variation are entangled in appearance without direct geometric constraints, making it difficult for existing frameworks to learn a representation that is truly aligned with the category-level estimation objective. To address this problem, we propose SchemaPose, a schema-guided framework for RGB-based category-level pose estimation. SchemaPose equips the estimation pipeline with an explicit parametric schema for modeling category-level regularities together with structured instance variation, and uses the inferred schema variables to guide pose-related prediction in an end-to-end query-based framework. The same formulation also supports template instantiation, synthetic annotation, and pose learning within a unified framework. Experiments on synthetic and real data show that SchemaPose achieves state-of-the-art performance among RGB-based methods for category-level 9D pose estimation.
